KTM 790/890 Headlight Error Eliminator

How does it work

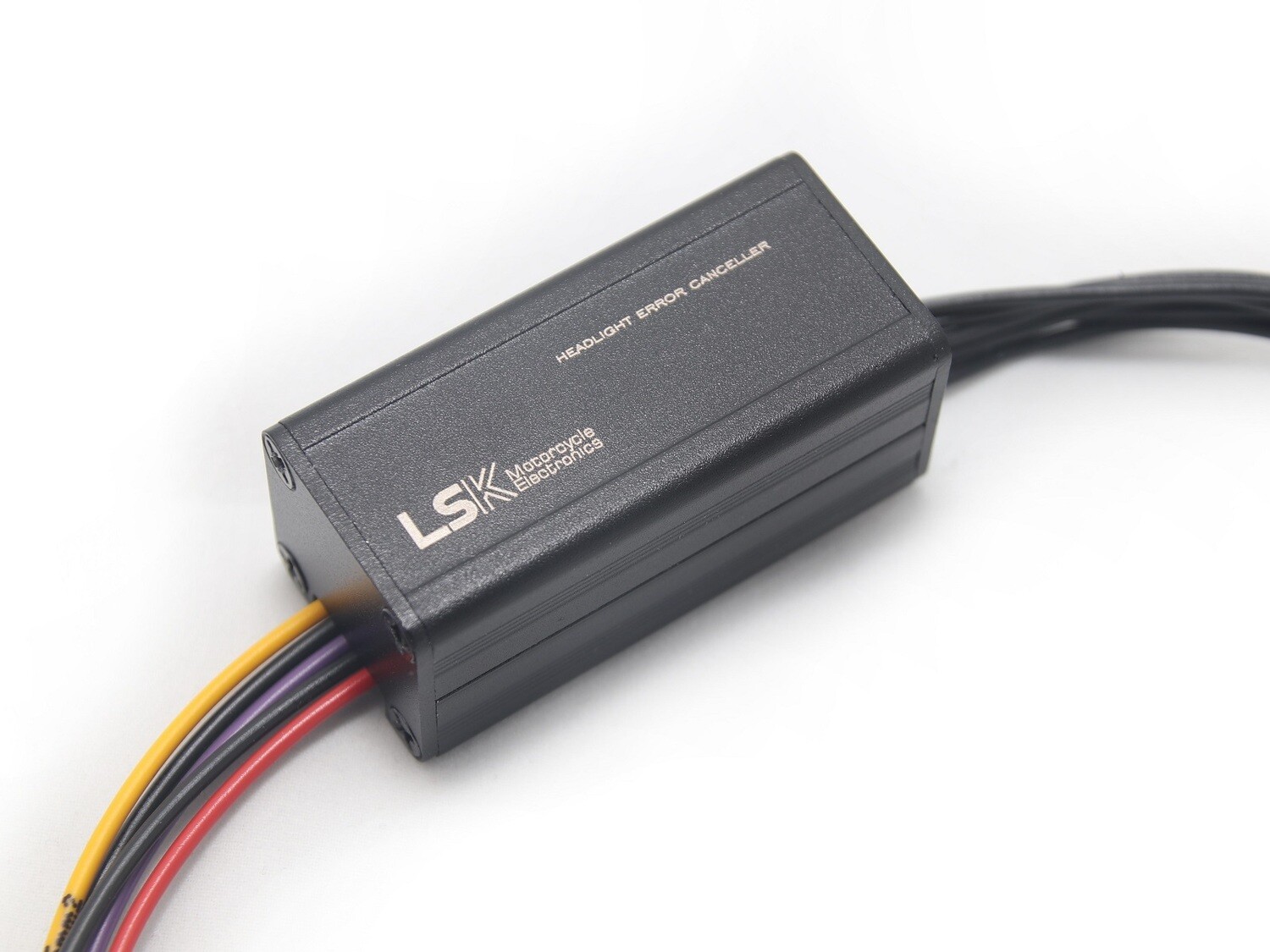

KTM790/890 Headlight Errror Eliminator is a device that eliminates HLU error displayed on dashboard in case of use aftermarket headlights instead an original one. It is sending the same messages via CAN bus as the original headlight so the bike can not identify any difference between the original headlight and the aftermarket headlight powered trough this device. Error eliminator fits into the original KTM790/890 headlight socket so it is not needed to do any changes on the motorcycle harness.

• Works perfect on:
  • KTM 390 Adventure/Duke
  • KTM 790 Adventure/Duke
  • KTM 890 Adventure/Duke
  • Husqvarna Svartpilen 701 and Husqvarna Vitpilen 701

Functions

Device provides outputs for low beam, high beam and the parking lamp.

Max allowed current draws from outputs are following:

• 8 A (ca 105 W) on low beam wire
• 8 A (ca 105 W) on high beam wire
• 3 A (ca 40W) on parking light wire

For higher currents it is required to use the relay and draw the power directly from the battery.

Documents

• User manual
